AISI 304 and AISI 316L are two commonly evaluated stainless-steel grades for industrial electrical enclosures. Both can be suitable for demanding applications, but they are not interchangeable in every environment. The correct choice depends on moisture, cleaning chemicals, chloride or salt exposure, temperature, surface condition, fabrication, gasket and fastener compatibility, maintenance and the project’s required service life.
AISI 316L is often evaluated for more aggressive chloride-bearing or chemical environments, while AISI 304 may provide an appropriate balance of corrosion resistance and cost for many general industrial, food, beverage and indoor applications. This is a selection principle, not a universal rule. The complete enclosure configuration and actual site conditions must be reviewed before specification.

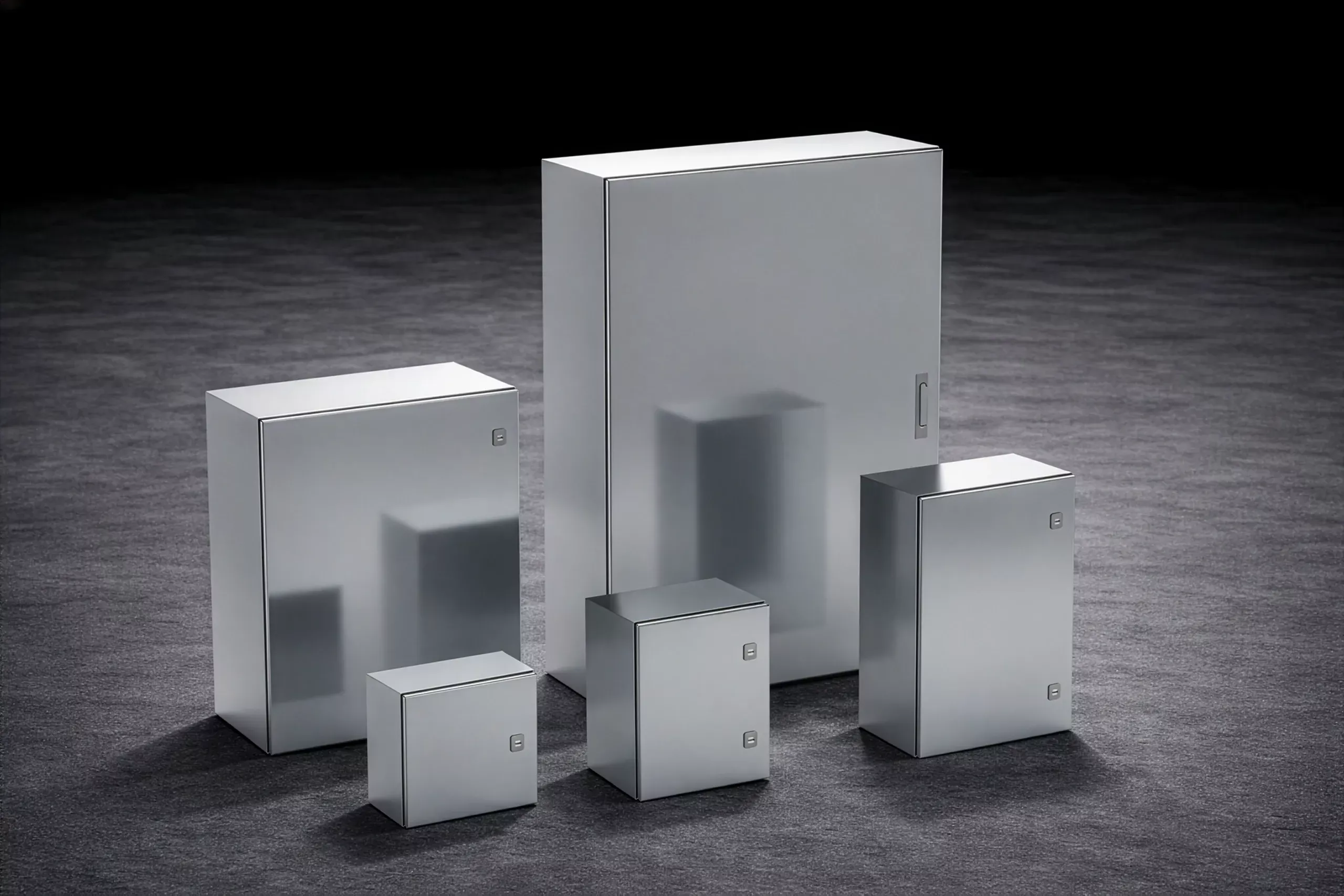

Tekpan Canada lists DM wall-mounted stainless-steel enclosures in both AISI 304 and AISI 316L options . This guide explains the practical difference between the grades and provides a project-focused method for selecting the appropriate stainless-steel enclosure for a Canadian installation.
Short answer: AISI 304 may be suitable for many general stainless-steel applications with moderate corrosion exposure. AISI 316L may be evaluated when chloride, salt, aggressive cleaning or chemical exposure creates a higher corrosion concern. The final selection should be based on the complete environment, enclosure design, rating, accessories, surface and maintenance plan.
What do 304, 304L, 316 and 316L mean?
The numbers identify stainless-steel grades with different alloy compositions. The “L” designation refers primarily to a lower carbon version of the corresponding grade.
The British Stainless Steel Association explains that the practical difference between 304 and 304L, and between 316 and 316L, is principally carbon content. It identifies a maximum carbon content of 0.08% for the standard 304 and 316 types and 0.030% for the corresponding 304L and 316L types .
The lower-carbon variants were developed to reduce the risk of intercrystalline corrosion, sometimes called weld decay, after exposure to relevant welding heat conditions. This distinction is especially important when the material is fabricated or welded, although the enclosure selection must still consider the complete product construction and manufacturing process.
For an enclosure buyer, the practical questions are:
- Is the quoted material AISI 304, 304L, 316 or 316L?
- Does the product document identify the grade clearly?
- Does the grade match the site’s corrosion and cleaning exposure?
- Does the material choice apply to the enclosure, accessories, fasteners and fabrication details?
- Does the supplier documentation support the required project specification?
AISI 304 stainless steel: where it may fit
AISI 304 is widely used for stainless-steel fabrication and may be evaluated for applications that require a corrosion-resistant and cleanable metal surface without the higher specification of a molybdenum-bearing 316 grade.
Potential applications to evaluate include:
- general industrial and manufacturing areas;
- indoor food and beverage equipment areas with moderate exposure;
- packaging and automation equipment;
- utility or service areas where stainless steel is specified;
- indoor washdown-related areas after chemical compatibility review; and
- projects where corrosion risk is present but chloride exposure is limited.
The suitability of AISI 304 depends on the actual cleaning chemicals, concentration, temperature, moisture, salt, surface condition, fasteners and maintenance. It should not be described as suitable for every food, pharmaceutical, outdoor or washdown application based on grade alone.
AISI 304 selection questions
| Question |
Why it matters |
| Is the enclosure exposed to chlorides or salt? |
Higher chloride exposure may require evaluation of 316L or another material |
| Which cleaning chemicals are used? |
Compatibility depends on chemical type, concentration, temperature and exposure time |
| Is the area continuously wet? |
Moisture, crevices, deposits and drying cycles affect corrosion risk |
| Is the enclosure welded or modified? |
Fabrication, heat-affected areas and surface treatment need review |
| Are accessories made from compatible materials? |
Fasteners, brackets, locks and glands can influence the complete system |
| Is the enclosure outdoors? |
Snow, rain, salt, condensation and temperature cycling add risk factors |
AISI 316L stainless steel: where it may fit
AISI 316L is an austenitic stainless-steel grade that includes molybdenum. Technical material guidance from Rolled Alloys explains that molybdenum improves resistance to chloride pitting and crevice corrosion compared with 304, which is why 316/316L is often considered for somewhat more aggressive environments .
Potential applications to evaluate include:
- locations with elevated salt or chloride exposure;
- coastal or marine-influenced environments;
- chemical-processing areas, subject to chemical compatibility;
- food, beverage or pharmaceutical areas with demanding cleaning conditions;
- water-treatment or utility applications with corrosive exposure; and
- outdoor or washdown-related projects where the corrosion risk justifies the additional specification.
AISI 316L is not corrosion-proof and is not a universal solution for all chemicals, temperatures or site conditions. Highly aggressive environments may require a different alloy, coating, finish or enclosure design. The project team should obtain material-compatibility guidance for the actual process.
AISI 316L selection questions
- What chloride, salt or chemical exposure occurs at the site?
- Are cleaning agents acidic, alkaline, oxidizing or chloride-bearing?
- Can contaminants remain on the enclosure surface between cleaning cycles?
- Are there crevices, deposits, dissimilar-metal interfaces or damaged surfaces?
- Do the accessories and fasteners provide a compatible overall system?
- Is the higher material specification justified by the lifecycle and maintenance objectives?
AISI 304 vs 316L comparison table
| Selection factor |
AISI 304 |
AISI 316L |
| General role |
Broad stainless-steel option for many moderate-exposure applications |
Stainless-steel option to evaluate for higher chloride or chemical exposure |
| Chloride exposure |
May be limited by higher chloride risk; assess the actual site |
Often considered where chloride pitting or crevice corrosion is a greater concern |
| Molybdenum |
Not the defining alloying addition associated with 316 |
Contains molybdenum; confirm exact material documentation |
| Lower-carbon grade |
304L is the lower-carbon counterpart |
316L is the lower-carbon counterpart |
| Typical cost position |
Often lower than 316L, subject to supplier and market |
Often higher than 304, subject to supplier and market |
| Cleaning |
Review chemicals, concentration, temperature and frequency |
Review chemicals, concentration, temperature and frequency |
| Outdoor use |
Evaluate salt, moisture, temperature and surface/finish |
Evaluate salt, moisture, temperature and surface/finish |
| Fabrication |
Review forming, welding, cutouts and surface treatment |
Review forming, welding, cutouts and surface treatment |
| Tekpan Canada option |
DM wall-mounted enclosure, stainless steel AISI 304 |
DM wall-mounted enclosure, stainless steel AISI 316L |
The table is a decision aid. It does not replace a material-compatibility review, product documentation or engineering approval.
Why the “L” grade matters in enclosure fabrication
The low-carbon “L” grade is particularly relevant to fabricated and welded stainless-steel components. BSSA explains that the lower carbon content reduces the risk of intercrystalline corrosion after exposure to welding-related heat conditions .
For an enclosure project, this means the buyer should ask how the product is fabricated and what material designation is included in the certificate or material documentation. A grade name in a marketing description may not provide enough information for a regulated or highly corrosive project.
Also review:
- welds and heat-affected areas;
- cutouts and modified edges;
- surface finish after fabrication;
- cleaning and passivation practices where applicable;
- fasteners and dissimilar-metal contact;
- gasket and accessory compatibility; and
- the documentation supplied with the final product.
Do not assume that selecting 316L automatically resolves poor fabrication, surface contamination, incorrect cleaning or unsuitable accessories.
Select by environment, not by material prestige
Food and beverage facilities
For food and beverage applications, start with the cleaning method and chemical exposure. AISI 304 may be appropriate in some moderate environments, while 316L may be evaluated when chloride, salt or more aggressive cleaning creates a higher corrosion risk.
The enclosure should also be reviewed for cleanability, access, cable entries, door and gasket condition, mounting and the surrounding installation. Electrical equipment enclosures should not be presented as direct-food-contact equipment or as automatic food-safety approvals.
Pharmaceutical facilities
Pharmaceutical projects may have additional quality, documentation, validation and cleaning requirements. Material selection should be coordinated with the facility’s engineering and quality teams. AISI 304 or 316L may be considered depending on the process and cleaning environment, but neither grade should be described as pharmaceutical-compliant without applicable product and project documentation.
Outdoor and coastal installations
Outdoor Canadian sites may encounter precipitation, snow, ice, condensation, temperature cycling, windblown dust, road salt and coastal air. AISI 316L may be evaluated where salt or chloride exposure is significant, but the decision must also include the enclosure rating, gasket, fasteners, cable entries, mounting, drainage and maintenance plan.
Chemical-processing environments
Do not select 304 or 316L from a generic chemical list. Identify the chemical, concentration, temperature, exposure time, cleaning cycle, deposit risk and contact method. Obtain specific compatibility guidance for aggressive or unusual environments.
Indoor automation and manufacturing
For a clean, dry indoor automation area, AISI 304 may provide an appropriate stainless-steel option if the project requires stainless construction. A higher grade may be unnecessary unless the environment, cleaning process or lifecycle plan justifies it.
A practical material-selection workflow
Step 1: Record the site exposure
Document moisture, standing water, spray, humidity, salt, chloride, chemicals, cleaning agents, temperature, sunlight, dust and mechanical exposure. Include normal operation, cleaning, shutdown and maintenance conditions.
Step 2: Identify the enclosure requirements
Define the enclosure form factor, dimensions, door arrangement, mounting, rating, cable entries, accessories and modifications. Material grade is only one part of the specification.
Step 3: Compare 304 and 316L against the actual exposure
Use the material comparison as a screening step. If chloride, salt or aggressive chemicals are present, evaluate 316L. If the exposure is moderate, evaluate whether 304 meets the requirement without unnecessary over-specification.
Step 4: Review fabrication and surface condition
Confirm grade, welds, cutouts, finish, cleaning, passivation where applicable, fasteners, gaskets and accessories. Surface contamination or poor installation can reduce the benefit of a higher grade.
Step 5: Confirm the product documents
Tekpan Canada lists DM wall-mounted stainless-steel enclosure options in AISI 304 and AISI 316L . Review the product brochure, technical drawing, declarations/certificates, installation instruction and accessory information for the exact model.
Step 6: Document the decision
Record why the selected grade was chosen, which exposure factors were considered, what documents were reviewed and what maintenance assumptions apply. This creates a traceable basis for procurement and future replacement.
Material and enclosure selection checklist
| Check |
Information to document |
| Site |
Indoor, outdoor, coastal, process, utility or washdown location |
| Moisture |
Rain, spray, humidity, condensation, standing water or snow melt |
| Chemistry |
Chemical name, concentration, temperature and exposure time |
| Salt/chloride |
Road salt, coastal air, brine, process chloride or cleaning residue |
| Cleaning |
Dry, wet, foamed, sprayed or high-pressure cleaning |
| Grade |
AISI 304, AISI 304L, AISI 316 or AISI 316L as documented |
| Fabrication |
Welds, cutouts, surface treatment and modifications |
| Accessories |
Gaskets, fasteners, locks, brackets, glands, panels and grounding parts |
| Rating |
Required NEMA/Type or IP protection for the complete configuration |
| Documentation |
Brochure, drawing, certificate/declaration and installation instruction |
| Maintenance |
Inspection, cleaning, surface care and replacement plan |
| Approval |
Engineer, owner, authority having jurisdiction or quality-team review |
Common mistakes to avoid
Assuming 316L is always necessary
A higher grade can add cost without solving a problem that is not present. Match the material to the documented exposure and lifecycle requirement.
Assuming 304 is suitable for every food or outdoor application
304 is widely used, but cleaning chemicals, chloride, salt, humidity, deposits and temperature can change the risk profile.
Confusing 316L with a corrosion-proof material
316L can provide improved resistance in some chloride-bearing environments, but it can still corrode under unsuitable chemical, temperature, crevice or contamination conditions.
Ignoring accessories and fasteners
The enclosure shell is not the entire corrosion system. Review fasteners, locks, brackets, cable glands, gaskets, grounding components and dissimilar-metal contact.
Selecting a grade without reviewing fabrication
Welds, cutouts, surface condition and post-fabrication treatment can affect performance. Request the relevant product and material documentation.
Treating material grade as a certification
AISI 304 or 316L identifies a material grade. It does not automatically establish a NEMA/IP rating, CSA/UL/cUL approval, food-safety approval or pharmaceutical compliance.
Using a generic chemical-compatibility list
A chemical’s concentration, temperature, exposure time and cleaning cycle can matter as much as the chemical name. Obtain application-specific advice for aggressive environments.
Frequently Asked Questions
What is the main difference between AISI 304 and 316L?
AISI 304 and 316L are different stainless-steel grades. 316L includes molybdenum and is often evaluated for higher chloride or chemical exposure, while 304 may be suitable for many general stainless-steel applications. The “L” indicates a lower-carbon grade; BSSA identifies 0.030% maximum carbon for 304L and 316L compared with 0.08% maximum for 304 and 316 .
Is 316L better than 304 for electrical enclosures?
Not universally. 316L may offer a stronger corrosion-resistance case in some chloride-bearing or aggressive environments, but 304 may be appropriate for many moderate-exposure projects. The final decision should include chemicals, cleaning, salt, moisture, surface, accessories, rating and maintenance.
Should I use 316L for a food-processing enclosure?
It may be evaluated where chloride, salt or aggressive cleaning creates a higher corrosion risk. AISI 304 may be adequate in some applications. Neither grade should be treated as an automatic food-safety or CFIA approval.
Is AISI 304 suitable for outdoor use in Canada?
It may be suitable for some outdoor applications, but the project must evaluate snow, rain, ice, condensation, road salt, coastal air, temperature cycling, rating, gaskets, fasteners and maintenance. Material grade alone does not establish outdoor suitability.
What does the “L” mean in 316L?
The “L” refers primarily to lower carbon content. Lower-carbon variants were developed to reduce the risk of intercrystalline corrosion after relevant welding heat exposure .
Does 316L eliminate corrosion risk?
No. Corrosion depends on the environment, chemical exposure, concentration, temperature, deposits, crevices, surface condition, fasteners, installation and maintenance. Highly aggressive environments may require another material or enclosure strategy.
Are AISI 304 and 316L enclosure accessories interchangeable?
Do not assume so. Confirm accessory material, dimensions, fasteners, gasket, lock, bracket, grounding and compatibility with the exact enclosure model and grade.
Which AISI stainless-steel enclosures does Tekpan Canada list?
Tekpan Canada lists DM wall-mounted single-door stainless-steel enclosures in AISI 304 and AISI 316L . Confirm current dimensions, ratings, accessories, certificates and availability before specifying.
Conclusion
AISI 304 and 316L can both be effective stainless-steel enclosure materials when selected for the correct environment. AISI 304 may provide a practical solution for many general and moderate-exposure applications. AISI 316L may be evaluated when chloride, salt, aggressive cleaning or chemical exposure increases the corrosion risk.
The right decision requires more than comparing material names. Review the site exposure, cleaning chemicals, temperature, salt, surface, fabrication, fasteners, gaskets, accessories, rating, certification, maintenance and lifecycle objectives. Then match the selected grade to the exact Tekpan enclosure model and current technical documentation.
Tekpan Canada lists DM wall-mounted stainless-steel enclosure options in AISI 304 and AISI 316L and provides technical resources for product selection and documentation review .
